Products

Products
Click the button to see more infomation.
Cool Bur
CB
Read More
Friction Grit
FG
Read More
Hand Piece
HP
Read More
Right Angle
RA
Read More
Tungsten Carbide
TC
Read More
Zirconium Bur
Z
Read More
Zirconium Crown Remover
ZCR
Read More

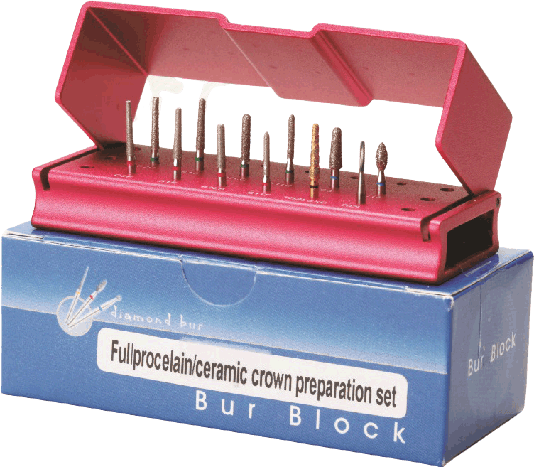

Bur Block
Block
Read More

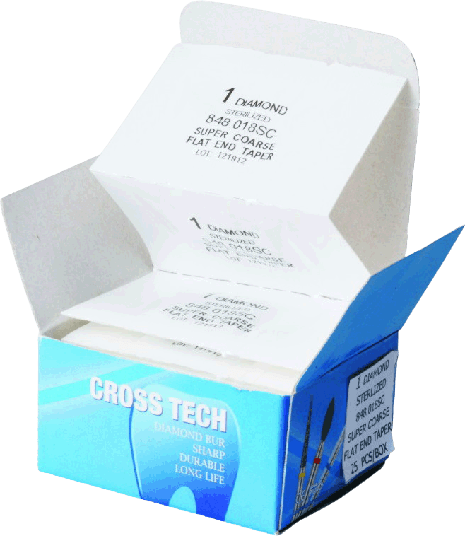

Sterilized Single Use Bur
One
Read More
Crosstech dental bur ISO number system

All crosstech diamond dental bur specification on the catalogue are ISO standards.
The ISO number system indicates datas for ordering.
For example:
A ⁸⁰⁶
Indicate the bur carries diamond powder and diamond cry-stals are bond to the body of the bur with a galvanic bond.
B ³¹⁴
Indication of type of shank.
C ⁰¹⁰
Indicates the head shape.
D ⁵³⁴
Indication of diamond powper size:
E ⁰¹⁴
Indicate the maximum head diameter in 1/10mm.
F ^3ML
Indicate the total length of the diamond coating portion
Meaning of the color ring

● Black color ring
Super coarse grit (180um)
Uses: For the fastest grinding

● Green color ring
Coarse grit (534) (150um)
Uses: for faster grinding

● Blue color ring
Normal grit (524) (100um)
Uses: for general purpose grinding

● Red color ring
Fine grit (514) (50um)
Uses: for smoothing previously ground tooth matter

● Yellow color ring
Super-fine grit (504) (25um)
Uses: for prefinishing composite fillings
Table of head dimeter
Types of shanks
FG standard
314
FG Short
313
RA Standard
204
HP Standard
104
